Programming the Clawbot¶

• Objective
• Intended Audience
• Goals
• The Clawbot
• Creating the Project
• PROS Project Structure
• Drive Control
• Arcade Control
• Arm Control
• Claw Control
• Reading the Switches
• Simple Autonomous

Objective¶

This tutorial will guide you through basic programming of the VEX Clawbot.

Intended Audience¶

This tutorial is intended for developers with some programming experience, but with little to no experience with the PROS library. If you haven't programmed before, we recommend checking out all the "Introduction and Basic C Features" sections of this tutorial series; you may also benefit from the "Pointers, Arrays and Strings" sections as well (although they aren't as pertinent).

Goals¶

At the end of this tutorial you will have:

• Understood the basic project structure of PROS
• Programmed a basic chassis with "tank" control or "arcade" control
• Programmed buttons to control the clawbot's lift
• Programmed a joystick axis to control the clawbot's claw
• Understood the standard subsystem module methodology
• Programmed a dead-reckoned autonomous routine

The Clawbot¶

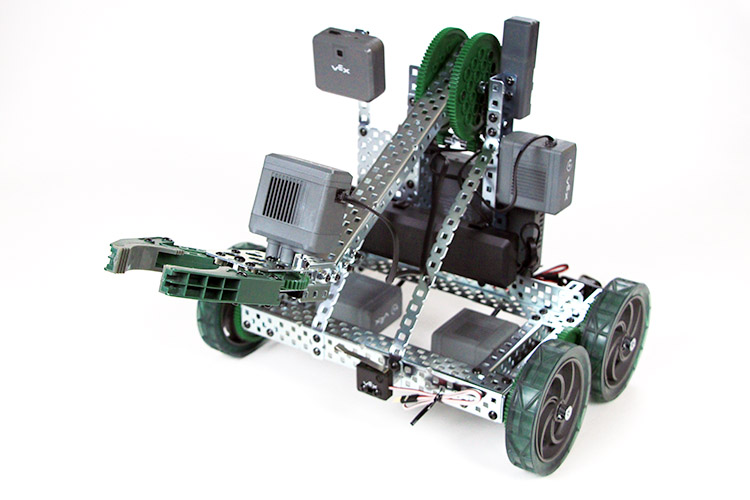

Here's the robot we'll be programming:

You can follow VEX's tutorial for building this robot here.

For the purposes of this tutorial, we've plugged in our motors into the following ports:

Port	Description	Port	Description
1	Left Wheels	11
2		12
3	Claw Motor	13
4		14
5	Vision Sensor	15
6		16
7		17
8	Arm Motor	18
9		19
10	Right Wheels	20

Port 21: Radio

For the ADI:

Port	Description	Port	Description
A	Left Bumper	E
B	Right Bumper	F
C		G
D		H	Arm Limit

Creating the Project¶

With Atom started, you can create a new PROS project by clicking the PROS menu, then click Create new Project .

Create a directory that you'd like to keep the source files for your Clawbot project.

Pick a directory to create the new project in and click Create. The PROS CLI will now copy the latest kernel template into the specified directory and Atom will open it.

PROS Project Structure¶

When you create your project, PROS will copy all of the files necessary to build your project. The structure of the project looks like:

                  project │   project.pros        (used by PROS CLI to know kernel version and other metadata) │   Makefile            (instructs make how to compile your project) |   common.mk           (helper file for Makefile) │ └───src                 (source files should go here) │   │   main.cpp        (source for competition task functions, like operator control and autonomous) | └───include             (Header files should go in here) │   │   api.h           (Lets source files know PROS API functions) │   │   main.h          (Includes api.h and anything else you want to include project-wide) |   └───pros            (Contains all of the specific header files for the PROS API functions) |   └───okapi           (Contains all of the header files for OkapiLib) |   └───display         (Contains all of the header files for LVGL, the graphics library for the V5 screen) │ └───firmware │   libpros.a       (Pre-compiled PROS library) │   okapilib.a      (Pre-compiled OkapiLib library) |   v5.ld           (Instructs the linker how to construct binaries for the V5)

                  project │   project.pros        (used by PROS CLI to know kernel version and other metadata) │   Makefile            (instructs make how to compile your project) |   common.mk           (helper file for Makefile) │ └───src                 (source files should go here) │   │   autonomous.cpp  (source for autonomous function) │   │   initialize.cpp  (source for initialization) │   │   opcontrol.cpp   (source for operator control) | └───include             (Header files should go in here) │   │   api.h           (Lets source files know PROS API functions) │   │   main.h          (Includes api.h and anything else you want to include project-wide) |   └───pros            (Contains all of the specific header files for the PROS API functions) |   └───okapi           (Contains all of the header files for OkapiLib) |   └───display         (Contains all of the header files for LVGL, the graphics library for the V5 screen) │ └───firmware │   libpros.a       (Pre-compiled PROS library) │   okapilib.a      (Pre-compiled OkapiLib library) |   v5.ld           (Instructs the linker how to construct binaries for the V5)

Note

Prior to PROS kernel 3.2.0, the opcontrol() , autonomous() , and initialize functions are separated into separate files (opcontrol.cpp, autonomous.cpp, and initialize.cpp). After PROS kernel 3.2.0, they are by default kept in one file (main.cpp). These could be separated again if you so wish.

Drive Control¶

Let's start with the simplest operator control setup for the clawbot - tank drive control. We'll map the controller's left joystick to the left drive motor and the controller's right joystick to the right drive motor.

The controller joystick can be read with the following function:

                                    std                  ::                  int32_t                                                      pros                  ::                  Controller                  ::                  get_analog                                                      (                                                      pros                  ::                  controller_analog_e_t                                                      channel                                                      )

                                    int32_t                                                      controller_get_analog                                                      (                                                      controller_id_e_t                                                      id                  ,                                                                        controller_analog_e_t                                                      channel                                                      )

And we'll set the motors with the following function:

                                    std                  ::                  int32_t                                                      motor_move                                                      (                                                      const                                                      std                  ::                  int8_t                                                      voltage                                                      )

                                    int32_t                                                      motor_move                                                      (                                                      uint8_t                                                      port                  ,                                                                        const                                                      int8_t                                                      voltage                                                      )

Before we get started with the tank drive control, it's important to note that in C++, smart devices have constructors that create the smart device object. Constructors are a standard C++ concept, and they're very important because a constructor is necessary to define a class for objects like the motors and controllers.

We'll be calling the constructors for the motors and controller at the beginning of opcontrol() , and then we'll run the tank drive code.

main.cpp¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 void opcontrol () { pros :: Motor left_wheels ( LEFT_WHEELS_PORT ); pros :: Motor right_wheels ( RIGHT_WHEELS_PORT , true ); // This reverses the motor pros :: Controller master ( CONTROLLER_MASTER ); while ( true ) { left_wheels . move ( master . get_analog ( ANALOG_LEFT_Y )); right_wheels . move ( master . get_analog ( ANALOG_RIGHT_Y )); pros :: delay ( 2 ); } }

main.c¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 void opcontrol () { while ( true ) { int left = controller_get_analog ( CONTROLLER_MASTER , ANALOG_LEFT_Y ); int right = controller_get_analog ( CONTROLLER_MASTER , ANALOG_RIGHT_Y ); right *= -1 ; // This will reverse the right motor motor_move ( LEFT_WHEELS_PORT , left ); motor_move ( RIGHT_WHEELS_PORT , right ); delay ( 2 ); } }

To test this code, run the following commands in the terminal window to create, build, and upload the code.

These 2 commands can be simplified to pros mu .

Arcade Control¶

While tank drive control is perfectly suitable for the driving style of some individuals, it is worth covering the arcade control method as well. This is similar to the movement style of many video games, where one joystick axis covers forward/backward movement and the other joystick covers turning.

We will take the previous tank drive control code and modify it slightly to become arcade control. The sum or difference of the power and turn joysticks will be the power values sent to the left and right wheels.

main.cpp¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 void opcontrol () { pros :: Motor left_wheels ( LEFT_WHEELS_PORT ); pros :: Motor right_wheels ( RIGHT_WHEELS_PORT , true ); pros :: Controller master ( CONTROLLER_MASTER ); while ( true ) { int power = master . get_analog ( ANALOG_LEFT_Y ); int turn = master . get_analog ( ANALOG_RIGHT_X ); int left = power + turn ; int right = power - turn ; left_wheels . move ( left ); right_wheels . move ( right ); pros :: delay ( 2 ); } }

main.c¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 void opcontrol () { while ( true ) { int power = controller_get_analog ( CONTROLLER_MASTER , ANALOG_LEFT_Y ); int turn = controller_get_analog ( CONTROLLER_MASTER , ANALOG_RIGHT_X ); int left = power + turn ; int right = power - turn ; right *= -1 ; // This reverses the right motor motor_move ( LEFT_WHEELS_PORT , left ); motor_move ( RIGHT_WHEELS_PORT , right ); delay ( 2 ); } }

As with the tank drive code, this can be uploaded with the pros mu command.

Arm Control¶

Next let's control the clawbot's arm. This will not require the use of a joystick, but instead we will use the controller's buttons.

We will use the following function to read the button press from the controller:

                                    std                  ::                  int32_t                                                      pros                  ::                  Controller                  ::                  get_digital                                                      (                                                      pros                  ::                  controller_digital_e_t                                                      button                                                      )

                                    int32_t                                                      controller_get_digital                                                      (                                                      controller_id_e_t                                                      id                  ,                                                                        controller_digital_e_t                                                      button                                                      )

We will use a different motor movement function than on the drivetrain. By using the velocity-controlled movement functions, we can ensure that the lift moves at a constant speed regardless of the weight that the lift is holding.

                                    std                  ::                  int32_t                                                      pros                  ::                  Motor                  ::                  move_velocity                                                      (                                                      const                                                      std                  ::                  int32_t                                                      velocity                                                      )

                                    int32_t                                                      motor_move_velocity                                                      (                                                      uint8_t                                                      port                  ,                                                                        const                                                      int32_t                                                      velocity                                                      )

To actuate the lift, we will check if the upmost right trigger is pressed or if the bottommost right trigger is pressed on the controller, and move the lift in that direction if so.

main.cpp¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 #define ARM_PORT 8 void opcontrol () { pros :: Motor left_wheels ( LEFT_WHEELS_PORT ); pros :: Motor right_wheels ( RIGHT_WHEELS_PORT , true ); pros :: Motor arm ( ARM_PORT , MOTOR_GEARSET_36 ); // The arm motor has the 100rpm (red) gearset pros :: Controller master ( CONTROLLER_MASTER ); while ( true ) { int power = master . get_analog ( ANALOG_LEFT_Y ); int turn = master . get_analog ( ANALOG_RIGHT_X ); int left = power + turn ; int right = power - turn ; left_wheels . move ( left ); right_wheels . move ( right ); if ( master . get_digital ( DIGITAL_R1 )) { arm . move_velocity ( 100 ); // This is 100 because it's a 100rpm motor } else if ( master . get_digital ( DIGITAL_R2 )) { arm . move_velocity ( -100 ); } else { arm . move_velocity ( 0 ); } pros :: delay ( 2 ); } }

main.c¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 #define ARM_PORT 8 void opcontrol () { motor_set_gearing ( ARM_PORT , MOTOR_GEARSET_36 ); // Establish that there is a 100rpm (red) gearset in the arm motor while ( true ) { int power = controller_get_analog ( CONTROLLER_MASTER , ANALOG_LEFT_Y ); int turn = controller_get_analog ( CONTROLLER_MASTER , ANALOG_RIGHT_X ); int left = power + turn ; int right = power - turn ; right *= -1 ; // This reverses the right motor motor_move ( LEFT_WHEELS_PORT , left ); motor_move ( RIGHT_WHEELS_PORT , right ); if ( controller_get_digital ( CONTROLLER_MASTER , DIGITAL_R1 )) { motor_move_velocity ( ARM_PORT , 100 ); // This is 100 because it's a 100rpm motor } else if ( controller_get_digital ( CONTROLLER_MASTER , DIGITAL_R2 )) { motor_move_velocity ( ARM_PORT , -100 ); } else { motor_move_velocity ( ARM_PORT , 0 ); } delay ( 2 ); } }

Claw Control¶

We will control the claw in the same manner as the lift, by toggling its movement with a controller button.

main.cpp¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 #define ARM_PORT 8 #define CLAW_PORT 3 void opcontrol () { pros :: Motor left_wheels ( LEFT_WHEELS_PORT ); pros :: Motor right_wheels ( RIGHT_WHEELS_PORT , true ); pros :: Motor arm ( ARM_PORT , MOTOR_GEARSET_36 ); // The arm motor has the 100rpm (red) gearset pros :: Motor claw ( CLAW_PORT , MOTOR_GEARSET_36 ); pros :: Controller master ( CONTROLLER_MASTER ); while ( true ) { int power = master . get_analog ( ANALOG_LEFT_Y ); int turn = master . get_analog ( ANALOG_RIGHT_X ); int left = power + turn ; int right = power - turn ; left_wheels . move ( left ); right_wheels . move ( right ); if ( master . get_digital ( DIGITAL_R1 )) { arm . move_velocity ( 100 ); // This is 100 because it's a 100rpm motor } else if ( master . get_digital ( DIGITAL_R2 )) { arm . move_velocity ( -100 ); } else { arm . move_velocity ( 0 ); } if ( master . get_digital ( DIGITAL_L1 )) { claw . move_velocity ( 100 ); } else if ( master . get_digital ( DIGITAL_L2 )) { claw . move_velocity ( -100 ); } else { claw . move_velocity ( 0 ); } pros :: delay ( 2 ); } }

main.c¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 #define ARM_PORT 8 #define CLAW_PORT 3 void opcontrol () { motor_set_gearing ( ARM_PORT , MOTOR_GEARSET_36 ); // Establish that there is a 100rpm (red) gearset in the arm motor motor_set_gearing ( CLAW_PORT , MOTOR_GEARSET_36 ); while ( true ) { int power = controller_get_analog ( CONTROLLER_MASTER , ANALOG_LEFT_Y ); int turn = controller_get_analog ( CONTROLLER_MASTER , ANALOG_RIGHT_X ); int left = power + turn ; int right = power - turn ; right *= -1 ; // This reverses the right motor motor_move ( LEFT_WHEELS_PORT , left ); motor_move ( RIGHT_WHEELS_PORT , right ); if ( master . get_digital ( DIGITAL_R1 )) { motor_move_velocity ( ARM_PORT , 100 ); // This is 100 because it's a 100rpm motor } else if ( master . get_digital ( DIGITAL_R2 )) { motor_move_velocity ( ARM_PORT , -100 ); } else { motor_move_velocity ( ARM_PORT , 0 ); } if ( master . get_digital ( DIGITAL_R1 )) { motor_move_velocity ( CLAW_PORT , 100 ); // This is 100 because it's a 100rpm motor } else if ( master . get_digital ( DIGITAL_R2 )) { motor_move_velocity ( CLAW_PORT , -100 ); } else { motor_move_velocity ( CLAW_PORT , 0 ); } delay ( 2 ); } }

Reading the Switches¶

The bump switches, or buttons, are plugged into the ADI and attached to the rear of the robot. We'll monitor the status of the bump switches, and prevent the robot from driving backwards if the switches are pressed.

We will be using the digital reading functionality of the ADI for this.

                                    std                  ::                  int32_t                                                      pros                  ::                  ADIDigitalIn                  ::                  get_value                                                      (                                                      )                                                      const

                                    int32_t                                                      adi_get_value                                                      (                  uint8_t                                                      port                                                      )

And here is the updated code:

main.cpp¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 #define ARM_PORT 8 #define CLAW_PORT 3 #define LEFT_BUMPER_PORT 'a' #define RIGHT_BUMPER_PORT 'b' void opcontrol () { pros :: Motor left_wheels ( LEFT_WHEELS_PORT ); pros :: Motor right_wheels ( RIGHT_WHEELS_PORT , true ); pros :: Motor arm ( ARM_PORT , MOTOR_GEARSET_36 ); // The arm motor has the 100rpm (red) gearset pros :: Motor claw ( CLAW_PORT , MOTOR_GEARSET_36 ); pros :: ADIDigitalIn left_bumper ( LEFT_BUMPER_PORT ); pros :: ADIDigitalIn right_bumper ( RIGHT_BUMPER_PORT ); pros :: Controller master ( CONTROLLER_MASTER ); while ( true ) { int power = master . get_analog ( ANALOG_LEFT_Y ); int turn = master . get_analog ( ANALOG_RIGHT_X ); int left = power + turn ; int right = power - turn ; if ( left_bumper . get_value () || right_bumper . get_value ()) { // One of the bump switches is currently pressed if ( left < 0 ) { left = 0 ; } if ( right < 0 ) { right = 0 ; } } left_wheels . move ( left ); right_wheels . move ( right ); if ( master . get_digital ( DIGITAL_R1 )) { arm . move_velocity ( 100 ); // This is 100 because it's a 100rpm motor } else if ( master . get_digital ( DIGITAL_R2 )) { arm . move_velocity ( -100 ); } else { arm . move_velocity ( 0 ); } if ( master . get_digital ( DIGITAL_L1 )) { claw . move_velocity ( 100 ); } else if ( master . get_digital ( DIGITAL_L2 )) { claw . move_velocity ( -100 ); } else { claw . move_velocity ( 0 ); } pros :: delay ( 2 ); } }

main.c¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 #define ARM_PORT 8 #define CLAW_PORT 3 #define LEFT_BUMPER_PORT 'a' #define RIGHT_BUMPER_PORT 'b' void opcontrol () { motor_set_gearing ( ARM_PORT , MOTOR_GEARSET_36 ); // Establish that there is a 100rpm (red) gearset in the arm motor motor_set_gearing ( CLAW_PORT , MOTOR_GEARSET_36 ); adi_port_set_config ( LEFT_BUMPER_PORT , ADI_DIGITAL_IN ); adi_port_set_config ( RIGHT_BUMPER_PORT , ADI_DIGITAL_IN ); while ( true ) { int power = controller_get_analog ( CONTROLLER_MASTER , ANALOG_LEFT_Y ); int turn = controller_get_analog ( CONTROLLER_MASTER , ANALOG_RIGHT_X ); int left = power + turn ; int right = power - turn ; if ( adi_port_get_value ( LEFT_BUMPER_PORT ) || adi_port_get_value ( RIGHT_BUMPER_PORT )) { // One of the bump switches is currently pressed if ( left < 0 ) { left = 0 ; } if ( right < 0 ) { right = 0 ; } } right *= -1 ; // This reverses the right motor motor_move ( LEFT_WHEELS_PORT , left ); motor_move ( RIGHT_WHEELS_PORT , right ); if ( master . get_digital ( DIGITAL_R1 )) { motor_move_velocity ( ARM_PORT , 100 ); // This is 100 because it's a 100rpm motor } else if ( master . get_digital ( DIGITAL_R2 )) { motor_move_velocity ( ARM_PORT , -100 ); } else { motor_move_velocity ( ARM_PORT , 0 ); } if ( master . get_digital ( DIGITAL_R1 )) { motor_move_velocity ( CLAW_PORT , 100 ); // This is 100 because it's a 100rpm motor } else if ( master . get_digital ( DIGITAL_R2 )) { motor_move_velocity ( CLAW_PORT , -100 ); } else { motor_move_velocity ( CLAW_PORT , 0 ); } delay ( 2 ); } }

We will use a similar technique for reading the limit switch. If the limit switch is pressed, then we will prevent the lift from being driven down further.

main.cpp¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 #define ARM_PORT 8 #define CLAW_PORT 3 #define LEFT_BUMPER_PORT 'a' #define RIGHT_BUMPER_PORT 'b' #define ARM_LIMIT_SWITCH_PORT 'h' void opcontrol () { pros :: Motor left_wheels ( LEFT_WHEELS_PORT ); pros :: Motor right_wheels ( RIGHT_WHEELS_PORT , true ); pros :: Motor arm ( ARM_PORT , MOTOR_GEARSET_36 ); // The arm motor has the 100rpm (red) gearset pros :: Motor claw ( CLAW_PORT , MOTOR_GEARSET_36 ); pros :: ADIDigitalIn left_bumper ( LEFT_BUMPER_PORT ); pros :: ADIDigitalIn right_bumper ( RIGHT_BUMPER_PORT ); pros :: ADIDigitalIn arm_limit ( ARM_LIMIT_SWITCH_PORT ); pros :: Controller master ( CONTROLLER_MASTER ); while ( true ) { int power = master . get_analog ( ANALOG_LEFT_Y ); int turn = master . get_analog ( ANALOG_RIGHT_X ); int left = power + turn ; int right = power - turn ; if ( left_bumper . get_value () || right_bumper . get_value ()) { // One of the bump switches is currently pressed if ( left < 0 ) { left = 0 ; } if ( right < 0 ) { right = 0 ; } } left_wheels . move ( left ); right_wheels . move ( right ); if ( master . get_digital ( DIGITAL_R1 )) { arm . move_velocity ( 100 ); // This is 100 because it's a 100rpm motor } else if ( master . get_digital ( DIGITAL_R2 ) && ! arm_limit . get_value ()) { arm . move_velocity ( -100 ); } else { arm . move_velocity ( 0 ); } if ( master . get_digital ( DIGITAL_L1 )) { claw . move_velocity ( 100 ); } else if ( master . get_digital ( DIGITAL_L2 )) { claw . move_velocity ( -100 ); } else { claw . move_velocity ( 0 ); } pros :: delay ( 2 ); } }

main.c¶

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 #define ARM_PORT 8 #define CLAW_PORT 3 #define LEFT_BUMPER_PORT 'a' #define RIGHT_BUMPER_PORT 'b' #define ARM_LIMIT_SWITCH_PORT 'h' void opcontrol () { motor_set_gearing ( ARM_PORT , GEARSET_36 ); // Establish that there is a 100rpm (red) gearset in the arm motor motor_set_gearing ( CLAW_PORT , GEARSET_36 ); adi_port_set_config ( LEFT_BUMPER_PORT , ADI_DIGITAL_IN ); adi_port_set_config ( RIGHT_BUMPER_PORT , ADI_DIGITAL_IN ); adi_port_set_config ( ARM_LIMIT_SWITCH_PORT , ADI_DIGITAL_IN ); while ( true ) { int power = controller_get_analog ( CONTROLLER_MASTER , CONTROLLER_ANALOG_LEFT_Y ); int turn = controller_get_analog ( CONTROLLER_MASTER , CONTROLLER_ANALOG_RIGHT_X ); int left = power + turn ; int right = power - turn ; if ( adi_port_get_value ( LEFT_BUMPER_PORT ) || adi_port_get_value ( RIGHT_BUMPER_PORT )) { // One of the bump switches is currently pressed if ( left < 0 ) { left = 0 ; } if ( right < 0 ) { right = 0 ; } } right *= -1 ; // This reverses the right motor motor_move ( LEFT_WHEELS_PORT , left ); motor_move ( RIGHT_WHEELS_PORT , right ); if ( master . get_digital ( CONTROLLER_DIGITAL_R1 )) { motor_move_velocity ( ARM_PORT , 100 ); // This is 100 because it's a 100rpm motor } else if ( master . get_digital ( CONTROLLER_DIGITAL_R2 ) && ! adi_port_get_value ( ARM_LIMIT_SWITCH_PORT )) { motor_move_velocity ( ARM_PORT , -100 ); } else { motor_move_velocity ( ARM_PORT , 0 ); } if ( master . get_digital ( CONTROLLER_DIGITAL_R1 )) { motor_move_velocity ( CLAW_PORT , 100 ); // This is 100 because it's a 100rpm motor } else if ( master . get_digital ( CONTROLLER_DIGITAL_R2 )) { motor_move_velocity ( CLAW_PORT , -100 ); } else { motor_move_velocity ( CLAW_PORT , 0 ); } delay ( 2 ); } }

Simple Autonomous¶

The autonomous program runs without the use of a controller. We will make a simple autonomous program that drives straight.

main.cpp¶

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 #define MOTOR_MAX_SPEED 100 // The motor has the 36 Gearset void autonomous () { pros :: Motor left_wheels ( LEFT_WHEELS_PORT ); pros :: Motor right_wheels ( RIGHT_WHEELS_PORT , true ); // This reverses the motor right_wheels . move_relative ( 1000 , MOTOR_MAX_SPEED ); left_wheels . move_relative ( 1000 , MOTOR_MAX_SPEED ); }

main.c¶

#define LEFT_WHEELS_PORT 1 #define RIGHT_WHEELS_PORT 10 #define MOTOR_MAX_SPEED 100 // The motor has the 36 Gearset void autonomous () { motor_move_relative ( LEFT_WHEELS_PORT , 1000 , MOTOR_MAX_SPEED ); motor_move_relative ( RIGHT_WHEELS_PORT , -1000 , MOTOR_MAX_SPEED ); }
